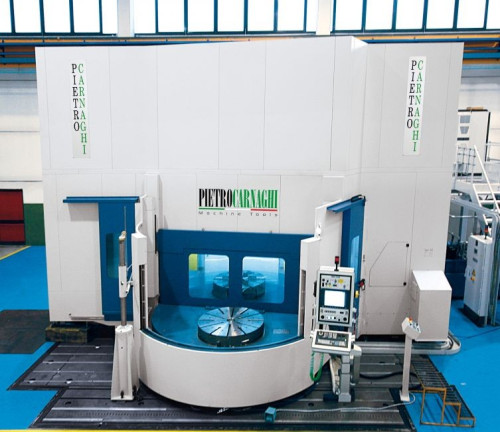

The turning and milling vertical lathe Pietro Carnaghi model ATF has been designed with a very compact termo-symmetrical structure with one single column assembled on the machine base.
ATF lathe can be equipped with a double pallet system, rotating 0 – 180°, useful to make a part centering on the external pallet, while with the internal pallet is in a machining process.
Compactness, rigidity, and extreme precision make the pallet ATF an ideal solution for machining of the most precise mechanical components.
|ATF10 T/TM||ATF14 T/TM|
|Max. turning diameter||mm||1000||1400|
|Table - Pallet diameter||mm||630 / 800||1000 / 1250|
|Max. allowable weight||t||2||3|
|Standard RPM||RPM||5.5 - 1250 / 5.5 - 1000||4.4 - 800 / 4.4 - 650|
|Turning power||kw||60 / (100)|
|Turning height||mm||750 - (1000) - (1200) - (1500) - (1800)|
|Ram section||mm||250 x 250|
|Ram stroke Z axis||mm||1000 - (1250) - (1500)|
|Max RPM||RPM||3000 - (6000)|
|Rapid feeds X-Z-axes||mm/min||30000|
