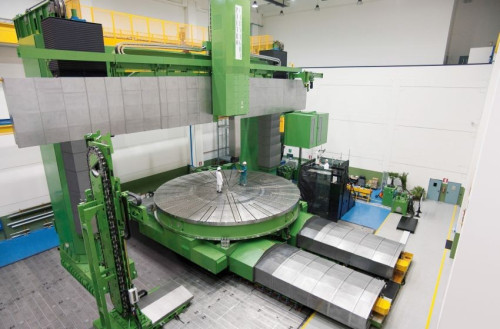

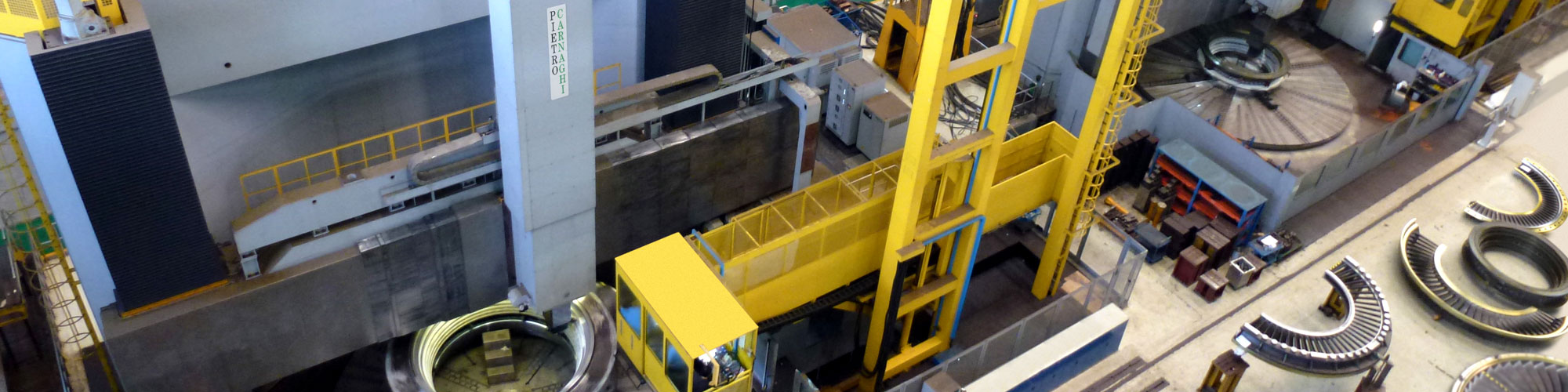

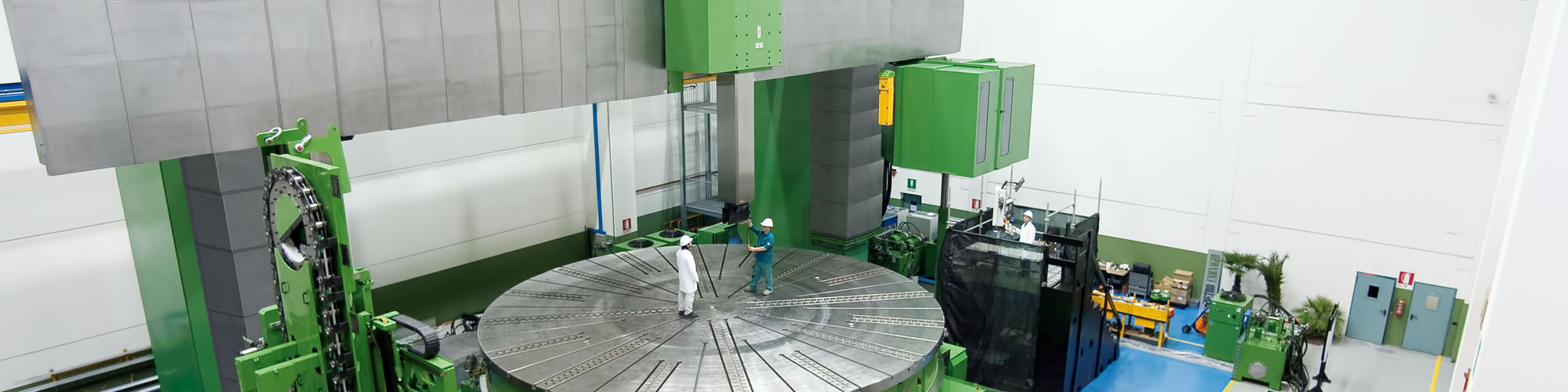

Large vertical lathes

AY series movable table


• Massive vertical lathes, designed with provision of movable table (Y axis)
• All hydrostatic axes
• Hydrostatic axial bearing table for table loads up to 500 ton
• Rigid structure with two columns ensuring maximum stability
• Extremely rigid cutting with power up to 300 kW
• Wide range of milling accessories and capability to interpolate up to 5 axes
• Maximize the machining operations on the big components, reducing set up times
on different machines
• Rigid Hirth coupling connection for tool holders and accessories


Technical data:

    AY 62
T/TM
AY 65
T/TM
AY 70
T/TM
AY 80
T/TM
AY 100
T/TM
AY 120
T/TM
AY 130
T/TM
AY 140
T/TM
Max. turning diameter mm 6200 6500 7000 8000 10000 12000 13000 14000
Table diameter mm 5000/5700 6000 6000 6500 8000 8000 10000 10000
Standard weight t 120 200 200 200 200 200 350 350
Max. allowable weight t 170 250 250 250 350 350 500 500
Max. RPM rpm 75 60 60 60 50 50 35 35
Turning power kW 60 - 100 - (120) - (180) - (300)
Turning height: fixed crossrail mm 1500
Turning height: movable crossrail mm 3000 - 3500 - 4000 - 4500 - 5000 - 6000 - 7000 - 8000
Ram section mm (350 x 350) - (400 x 400) - (500 x 500) - (600 x 600)
Ram stroke Z axis mm 1500 - (2000) - (2500) - (3000) - (3500) - (4000)
Milling power kW   40 / 60 / 71 / 100
Max. RPM rpm   2500 - 3000 (6000)
Rapid feeds X-Z-axes mm./min 15000 10000
Rapid feeds Y-axis mm./min 10000
