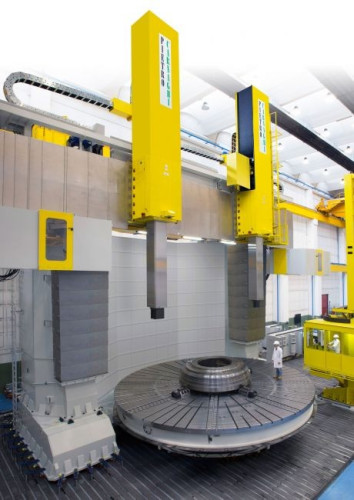

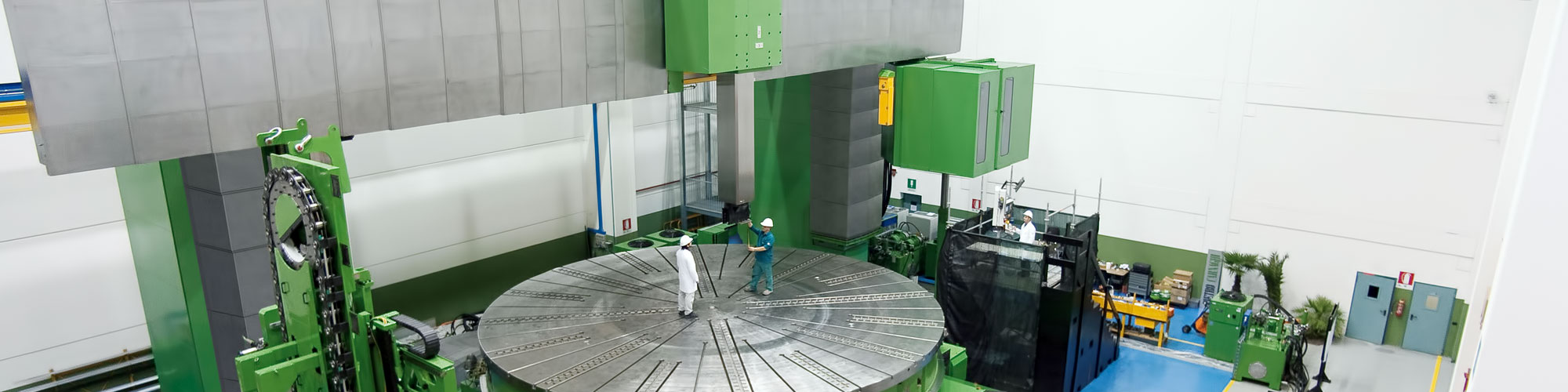

专为大型工件设计的AP型机床采用双立柱结构,工件的最大直径可达14m(45.9 ft) 。

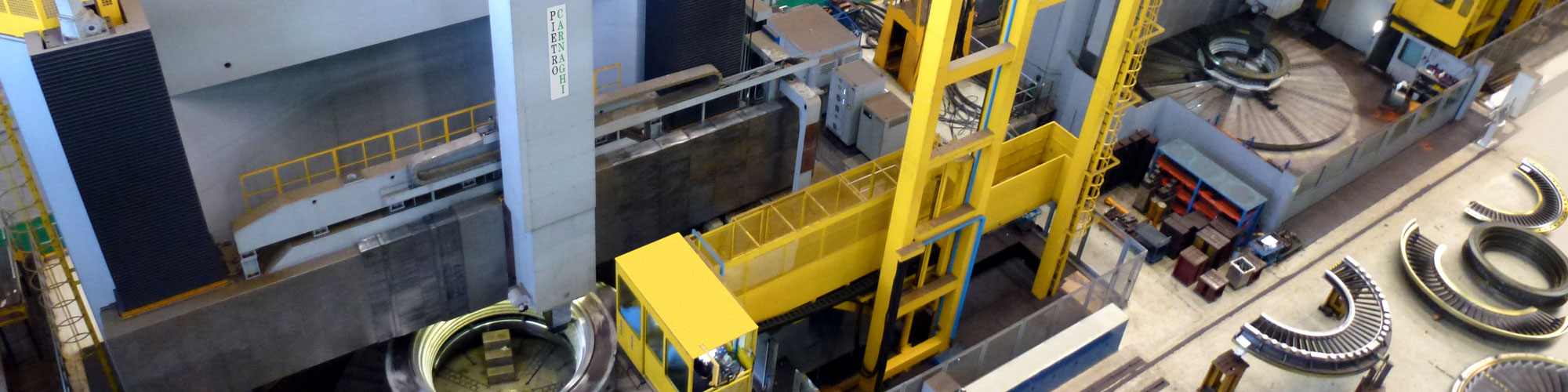

机床为框架结构,立柱安装在装有主轴和变速箱的工作台底座上。
所有的这些部分装配到一起,构成一个具有最大稳定性和刚性、能够承受恶劣切削条件的坚固结构。
在横梁前部,有两个用于支撑滑枕鞍架水平运动(通过静压系统)的水平导轨。顶部和底部导轨间的距离是经过计算的,确保机床具有最佳的切削性能。
所有的机床结构都经过有限元分析(FEM),主要的框架部件都经过热稳定测试并符合热处理工艺。
技术参数:
AP 70 T/TM |
AP 80 T/TM |
AP 90 T/TM |
AP 100 T/TM |
AP 120 T/TM |
AP 130 T/TM |
AP 140 T/TM |
|||
---|---|---|---|---|---|---|---|---|---|
Max. turning diameter | mm | 7000 | 8000 | 9000 | 10000 | 12000 | 13000 | 14000 | |
Table diameter | mm | 6000 | 6500 | 8000 | 8000 | 8000 | 10000 | 10000 | |
Standard weight | t | 200 | 200 | 200 | 200 | 200 | 350 | 350 | |
Max. allowable weight | t | 250 | 250 | 350 | 350 | 350 | 500 | 500 | |
Max. RPM | rpm | 60 | 60 | 50 | 50 | 50 | 35 | 35 | |
Turning power | kW | 120 - (180) - (300) | |||||||
Turning height: fixed crossrail | mm | 1500 | |||||||
Turning height: movable crossrail | mm | 3000 - 3500 - 4000 - 4500 - 5000 - 6000 - 7000 - 8000 | |||||||
Ram section | mm | (400 x 400) - (500 x 500) - (600 x 600) | |||||||
Ram stroke Z axis | mm | (2000) - (2500) - 3000 - 3500 - 4000 | |||||||
Milling power | kW | 60 / 71 / 100 | |||||||
Max. RPM | rpm | 2500 - 3000 - (6000) | |||||||
Rapid feeds X-Z-axes | mm./min | 15000 |
