Tornos verticales - grandes dimensiones
Serie AS monomontante (mm 6500 - mm 18000)

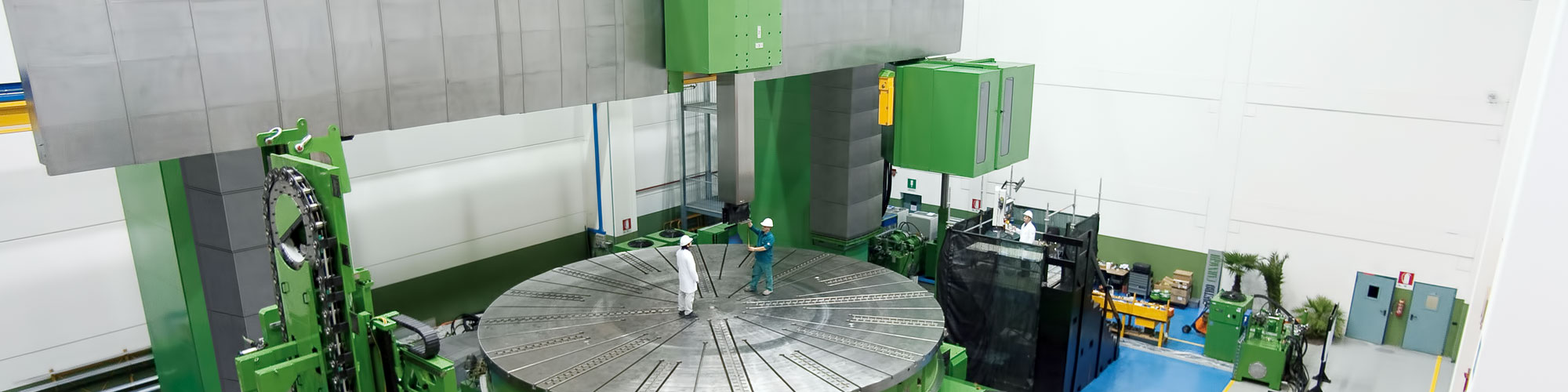

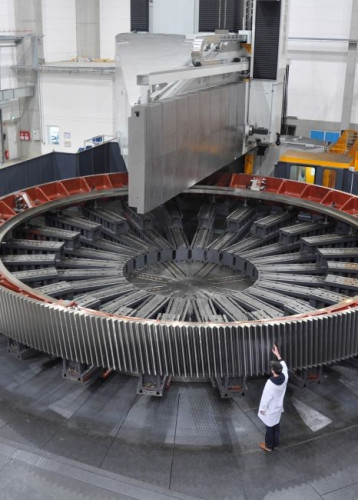

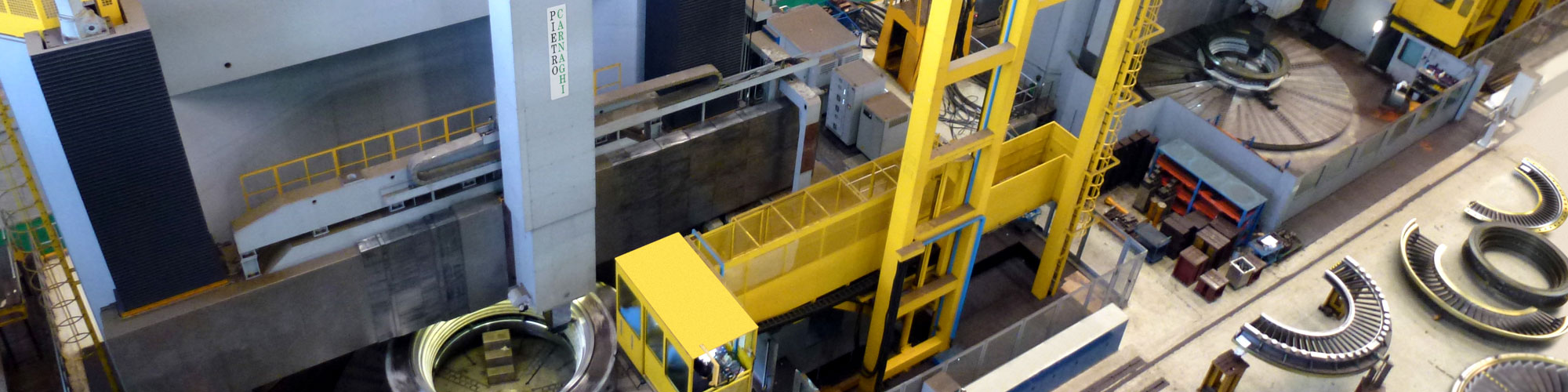

Tornos vertciales de grandes dimensiones, SERIE AS.
Se caracterizan por una estructura extremadamente rígida, con un monomontante tipo columna, fijado a suelo.
La estructura de los mismos, es muy funcional, para la mecanización de grandes diámetros y tienen una capacidad considerable para aumentar el diámetro mecanizable.
La estructura, está constituida por una base que contiene el mandrino y el cambio de rotación de la mesa con un solo montante y con guía de desplazamiento en el travesano móvil, prefisto de forma y dimensiones sobradamente suficientes, para soportar las más severas condiciones de trabajo.
Un mecanismo sofisticado de compensación mecánica del travesaño y del montante, se ha desarrollado en años de experiencia y en diferentes campos de aplicación: desde la mecanización de componentes para el sector nuclear hasta componenetes para el sector aeroespacial.
Actúan Tres diferentes tipos de tirantes de compensación, para minimizar la deflexión geométrica, generada por las grandes masas en movimiento sobre los ejes lineales de la máquina.
Por otra parte, la estructura está proyectada mediante análisis de elementos finitosI (FEM) con ciclos de estabilización térmica de distensiones.
Datos técnicos:
| AS 65 T/TM |
AS 80 T/TM |
AS 100 T/TM |
AS 120 T/TM |
AS 140 T/TM |
AS 160 T/TM |
AS 180 T/TM |
||
|---|---|---|---|---|---|---|---|---|
| Max. turning diameter | mm | 6500 | 8000 | 10000 | 12000 | 14000 | 16000 | 18000 |
| Table diameter | mm | 6000 | 6500 | 8000 | 8000 | 10000 | 10000 | 10000 |
| Standard weight | t | 200 | 200 | 200 | 200 | 350 | 350 | 350 |
| Max. allowable weight | t | 250 | 250 | 350 | 350 | 500 | 500 | 500 |
| Max. RPM | rpm | 60 | 60 | 40 | 40 | 35 | 35 | 35 |
| Turning power | kW | 150 - (230) - (300) | ||||||
| Turning height: fixed crossrail | mm | 1500 | ||||||
| Turning height: movable crossrail | mm | 3000 - 3500 - 4000 - 4500 - 5000 - 6000 - 7000 - 8000 | ||||||
| Ram section | mm | 350 x 350 - (400 x 400) - (500 x 500) - (600 x 600) | ||||||
| Ram stroke Z axis | mm | 1500 - (2000) - (2500) - (3000) - (3500) - (4000) | ||||||
| Milling power | kW | 40 / 60 / 71 /100 | ||||||
| Max. RPM | rpm | 2500 - 3000 (6000) | ||||||
| Rapid feeds X-Z-axes | mm./min | 15000 | 10000 | |||||
