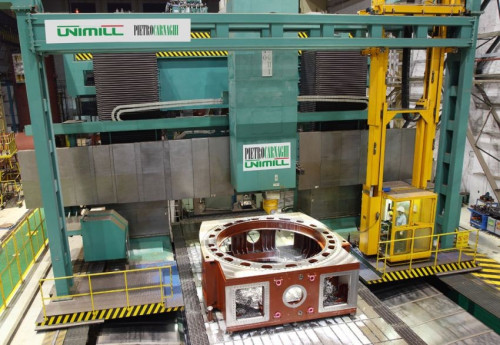

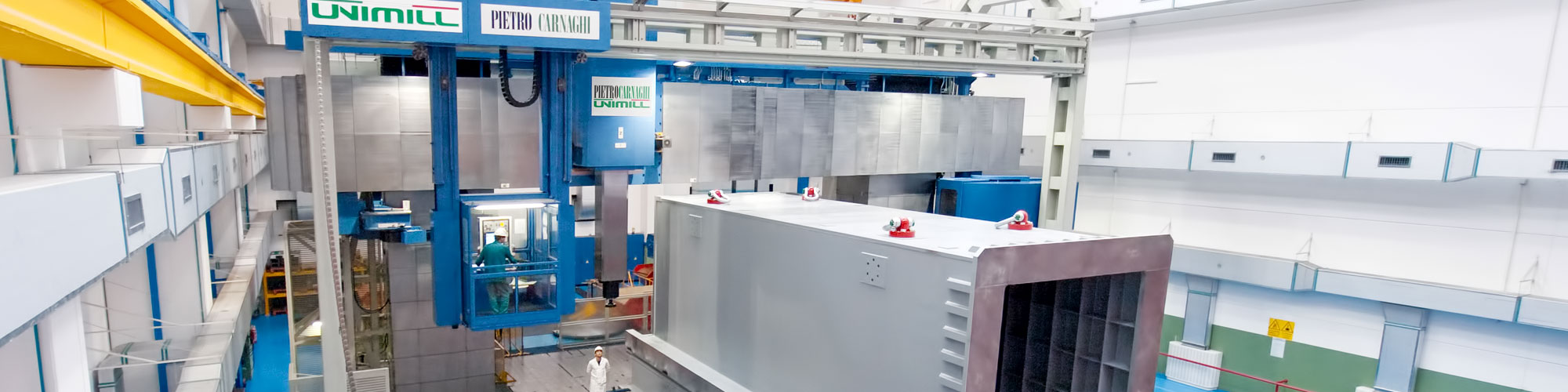

Pietro Carnaghi produce desde hace decenios, las fresadoras verticales de pórtico móvil, tipo Gantry, modelos UNIMILL. Estas máquinas, ofrecen soluciones técnicas extremadamente innovativas y con elevadas características cualitativas y de automatización, los modelos Unimill se fabrican con estructura maciza, en la que el pórtico móvil se sustenta hidrostáticamente así como el movimiento del eje Y. El paso entre montantes, puede llegar a 10.000 mm y el ancho del plano de trabajo a 9000 mm. La longitud de la mesa de trabajo, es modular y la misma, varía en función de la solicitud del cliente. El modelo UNIMILL, puede ser equipado de mesa de tornear, para de este modo, constituir, una solución completa para todos los mecanziados necesarios.

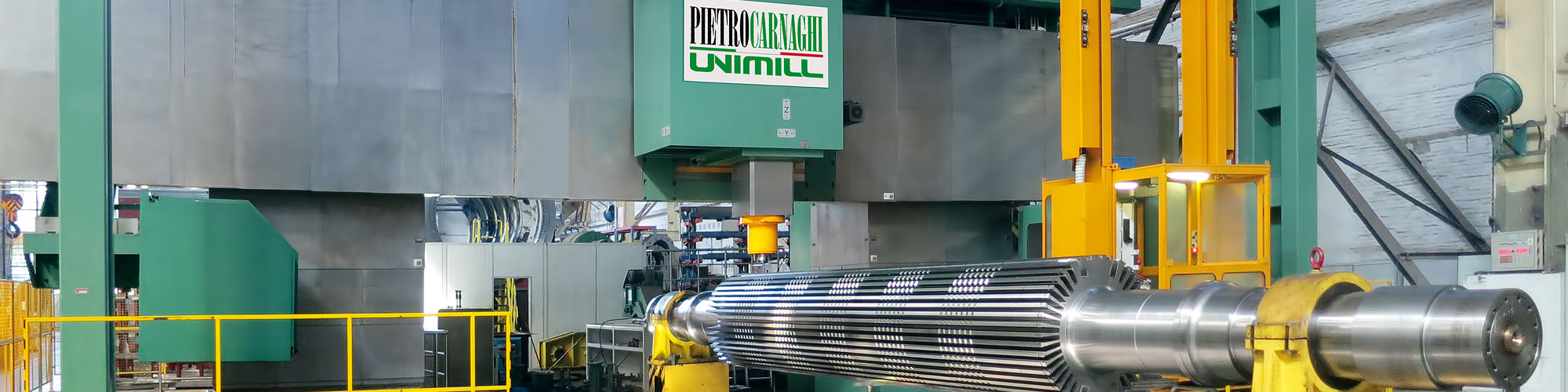

Los modelos Unimill, permiten el mecanizado pendular, con dos áreas separadas sobre la mesa: un área de mecanizado, con las protecciones y carenados móviles (opción) y un área de amarre pieza, con acceso mediante una pasarela a la altura de la mesa. Se ha puesto especial atención en favorecer la flexibilidad de estos modelos, para garantizar la más alta productividad.
El cambio de los accesorios y herramientas, se realiza en modo automático, con sistemas de cadena portaherramientas, discos-almacén o pick-up móviles para accesorios pesados. Para completar la universalidad de las operaciones realizables, se dispone de una gran gama de cabezales de fresar.
Datos técnicos:
UniMil 40 |
UniMill 50 |
UniMill 60 |
UniMill 70 |
UniMill 80 |
UniMill 90 |
UniMill 100 |
UniMill 110 |
UniMill 120 |
UniMill 130 |
UniMill 140 |
||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Distance between the columns | mm | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 | 10000 | 11000 | 12000 | 13000 | 14000 |
Table width | mm | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 | 10000 | 11000 | 12000 | |
Milling height with vertical head: fixed crossrail | mm | 1500 - 2000 - 2500 | ||||||||||
Milling height with vertical head: movable crossrail | mm | 3000 - 3500 - 4000 | 3000 - 4000 - 5000 - 6000 | 4000 - 5000 - 6000 - 7000 | 4000 - 5000 - 6000 - 7000 - 8000 | |||||||
Ram stroke Z axis | mm | 1500 | 2000 - 2500 - 3000 - 3500 - 4000 | |||||||||
Ram section | mm | 480 x 480 | 500 x 500 / 600 x 600 | |||||||||
Milling power | kW | 37 / 50 | 60 / 75 / 113 | |||||||||
Milling torque | Nm | 1900 / 2600 | 6122 / 6250 / 10100 | |||||||||
Max. RPM | rpm | 4000 | 4000 / 2500 | |||||||||
Tool taper | ISO 50 - HSK 100 | ISO 50 or HSK 100 / ISO 60 or HSK 160 | ||||||||||
Rapid feed X, Y and Z | mm/min |
20000 | 15000 | 10000 | ||||||||
Turning table diameter | mm |
3000 | 4000 | 5000 | 6000 | 8000 | 10000 |
