皮特卡纳基已生产UNIMILL系列龙门移动式机床(龙门型)长达数十年。

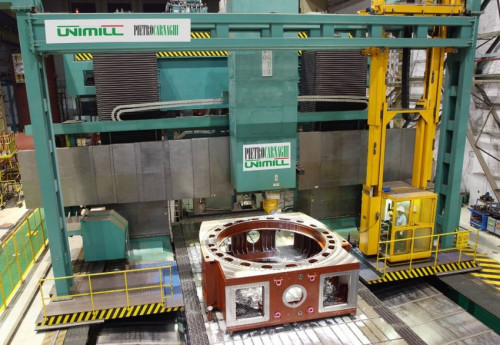

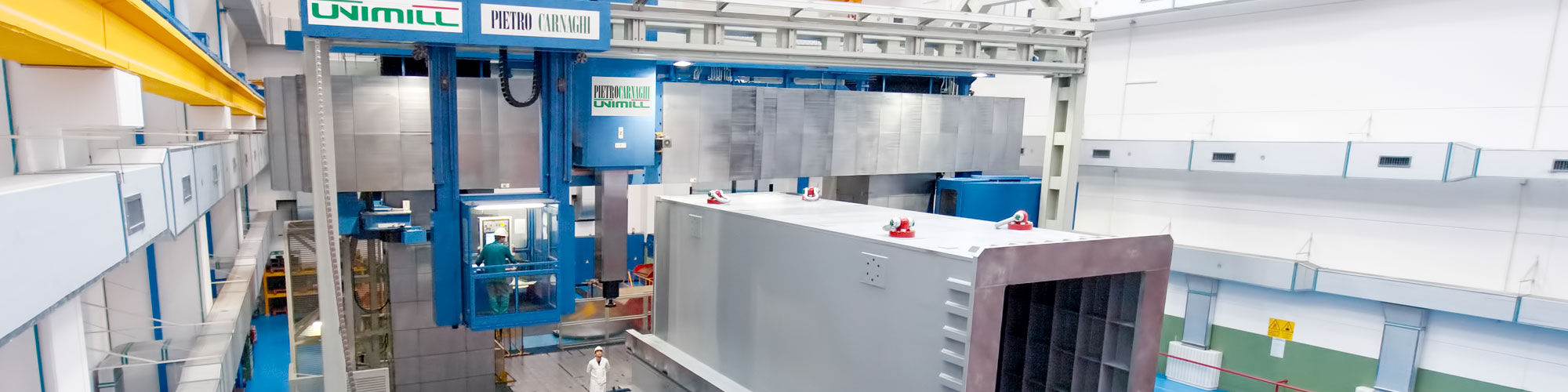

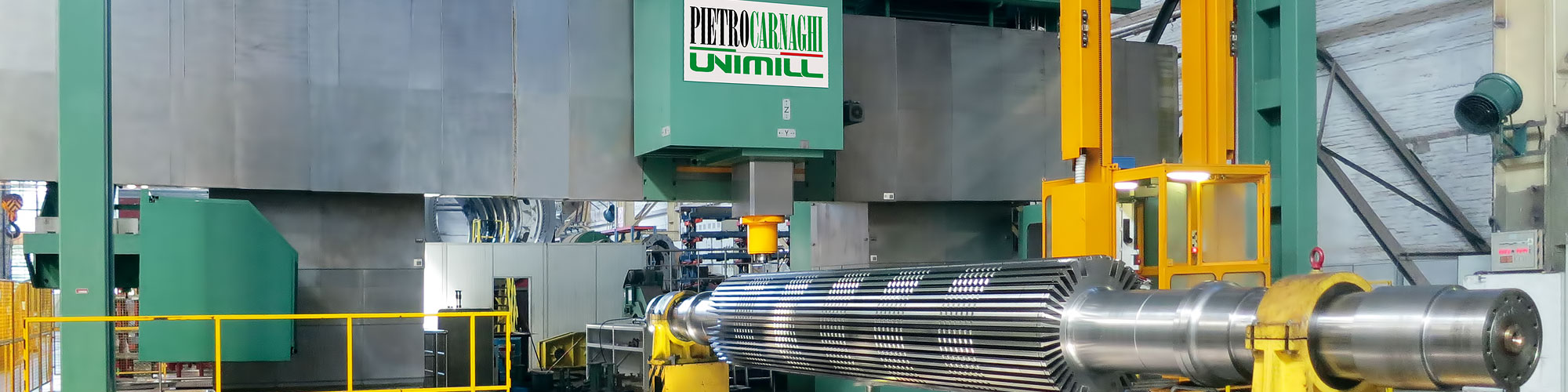

机床应用创新的技术理念,具有较高的自动化程度,且质量上乘。 UNIMILL系列机床结构厚重,龙门部分的移动和Y轴的移动都是通过静压导轨实现的。立柱间距可以达到10000mm(32.8 ft),工作面可以达到9000mm (29.5 ft)。地面工作台的长度是模块化的,可以根据用户的需要进行设计和制造。UNIMILL系列龙门移动铣床可以另外配一个车削工作台,能够满足所有可能加 工的需要。
UNIMILL系列机床可以采用“钟摆”概念进行操作:地面工作台上有2个独立的工作区域,一个是带有防护装置和移动围栏的加工区域(可选),另外一个是用来装卸工件的区域。导轨防护罩上可带有桥式结构
该机床设计的焦点集中在提高灵活性以获得最大的加工效率上。
附件和刀具通过链式刀库、盘式刀库或可移动拾取系统实现全自动交换
有多种不同的、可用于铣操作的附件可供选择。
技术参数:
UniMil 40 |
UniMill 50 |
UniMill 60 |
UniMill 70 |
UniMill 80 |
UniMill 90 |
UniMill 100 |
UniMill 110 |
UniMill 120 |
UniMill 130 |
UniMill 140 |
||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Distance between the columns | mm | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 | 10000 | 11000 | 12000 | 13000 | 14000 |
Table width | mm | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 | 10000 | 11000 | 12000 | |
Milling height with vertical head: fixed crossrail | mm | 1500 - 2000 - 2500 | ||||||||||
Milling height with vertical head: movable crossrail | mm | 3000 - 3500 - 4000 | 3000 - 4000 - 5000 - 6000 | 4000 - 5000 - 6000 - 7000 | 4000 - 5000 - 6000 - 7000 - 8000 | |||||||
Ram stroke Z axis | mm | 1500 | 2000 - 2500 - 3000 - 3500 - 4000 | |||||||||
Ram section | mm | 480 x 480 | 500 x 500 / 600 x 600 | |||||||||
Milling power | kW | 37 / 50 | 60 / 75 / 113 | |||||||||
Milling torque | Nm | 1900 / 2600 | 6122 / 6250 / 10100 | |||||||||
Max. RPM | rpm | 4000 | 4000 / 2500 | |||||||||
Tool taper | ISO 50 - HSK 100 | ISO 50 or HSK 100 / ISO 60 or HSK 160 | ||||||||||
Rapid feed X, Y and Z | mm/min |
20000 | 15000 | 10000 | ||||||||
Turning table diameter | mm |
3000 | 4000 | 5000 | 6000 | 8000 | 10000 |
